Removal and Replacement of Insulation

Removal and Replacement of Insulation

The removal and replacement of insulation on chilled water pipes, or any other type of pipe, is a straightforward but essential task in maintaining the efficiency of your HVAC system. Proper insulation prevents energy loss, reduces condensation, and protects pipes from external temperature fluctuations. Here’s a step-by-step guide for safely and efficiently removing and replacing insulation on chilled water pipes.

1. Preparation and Safety

Before starting the removal and replacement process, ensure you have the necessary tools, materials, and safety equipment:

  • Materials and Tools:
  • Replacement insulation (e.g., fiberglass, foam, rubber, or reflective insulation depending on the system requirements)
  • Utility knife or insulation cutting tool
  • Measuring tape
  • Gloves and safety glasses
  • Insulation adhesives (if required)
  • Duct tape or sealing tape (for securing insulation seams)
  • Pipe supports (if required)
  • Protective clothing (to protect against itchy fiberglass, if using fiberglass insulation)
  • Safety:
  • Wear protective gloves and safety glasses to avoid injury or irritation from the insulation material.
  • If working with fiberglass or mineral wool insulation, wear long sleeves and a dust mask to protect yourself from airborne fibers.

2. Shut Down and Isolate the System

Before starting work on the pipes:

  • Turn off the system: Shut down the chilled water system and relieve pressure from the pipes if needed.
  • Drain the system: If you're working on pipes that contain chilled water, ensure that the system is drained and pressure is relieved. This will also help reduce any risk of water leaks when removing the old insulation.

Other Services

Get in touch

Let’s Get Started!

Contact Now

3. Remove the Old Insulation

Depending on the type of insulation (fiberglass, foam, rubber, etc.), the removal process may vary slightly. Here’s how you can proceed:

  • Fiberglass or Mineral Wool Insulation:
  • Cut the Insulation: Use a utility knife or scissors to carefully cut through the insulation. Start at one end of the pipe and work your way down to the other end. Be cautious of the sharp edges of the pipe when cutting.
  • Peel Back the Insulation: Once the cuts are made, peel the insulation away from the pipe. Fiberglass insulation can often be rolled off, but for thicker materials, you may need to break it into smaller sections.
  • Dispose of Old Insulation Properly: Dispose of the old insulation in a trash bag, and if you're dealing with fiberglass, be sure to bag it properly to avoid contamination or inhalation of fibers.
  • Foam or Rubber Insulation:
  • Cut or Slice the Insulation: If the insulation is foam or rubber, it’s usually wrapped around the pipe in a tubular form. You can cut along the seam of the insulation with a utility knife to remove it easily.
  • Pull Off the Insulation: Once the cut is made, carefully pull the insulation off the pipe in sections. Be sure not to tear or damage the insulation if you're planning to reuse sections.
  • Reflective Insulation:
  • Remove Tape or Adhesive: If the reflective insulation is held in place by adhesive or tape, carefully remove these elements first.
  • Peel or Cut Off: Peel back or cut the reflective material along the seams, and remove it from the pipes.

4. Inspect the Pipes

Once the old insulation is removed, inspect the condition of the chilled water pipes:

  • Check for Leaks: Ensure that there are no leaks in the pipes before applying new insulation.
  • Clean the Pipes: Clean the pipes of any debris, dust, or residual adhesive. Wipe down the surfaces with a clean, dry cloth to ensure that the new insulation will adhere properly.

5. Prepare and Install New Insulation

Now that the pipes are clean and inspected, it’s time to install the new insulation. The type of insulation material you choose depends on your system’s requirements. Here’s how to install the most common types:

  • Foam or Rubber Insulation (Tubular Form):
  • Measure and Cut: Measure the length of pipe to be insulated, then cut the foam or rubber insulation to the appropriate length.
  • Fit the Insulation: Slide the cut foam or rubber insulation over the pipe. It should fit snugly around the pipe without any gaps. Make sure the seams line up perfectly.
  • Seal the Joints: If necessary, use adhesive, duct tape, or insulation-specific tape to seal the seams and joints. Make sure all seams are tight to prevent condensation or air gaps.

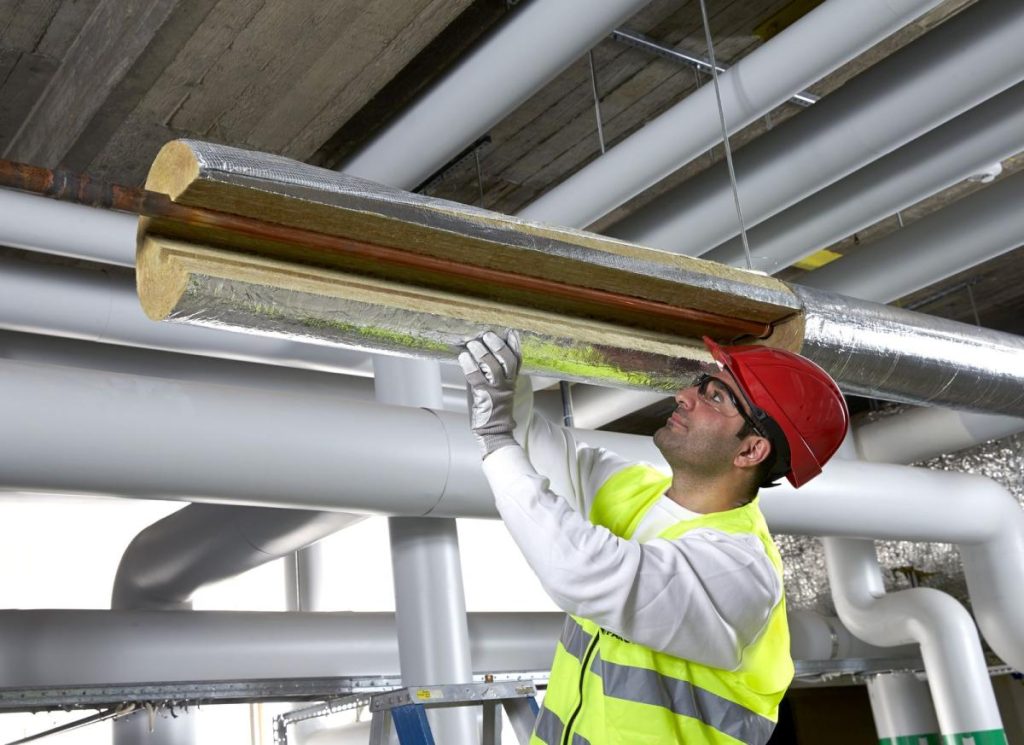

  • Fiberglass or Mineral Wool Insulation:
  • Wrap the Insulation: If you're using fiberglass or mineral wool batt insulation, wrap it around the chilled water pipe, starting at one end. If you're using rolls or batts, make sure to overlap the edges slightly to avoid gaps.
  • Secure the Insulation: Use duct tape, adhesive, or wire mesh to secure the insulation around the pipe. In some cases, you may need to wrap the insulation with a vapor barrier to further prevent moisture buildup.
  • Seal Open Ends: For batt insulation, tape any exposed seams or edges with vapor barrier tape or duct tape to ensure the insulation stays in place.
  • Reflective Insulation:
  • Wrap Around the Pipe:Wrap the reflective insulation around the pipe. The reflective side should face outward to reflect heat. Ensure the material fits snugly around the pipe and there are no gaps.
  • Seal the Edges: Use adhesive or foil tape to secure the edges and seams. Make sure all seams are sealed properly to prevent air leakage.

6. Recheck and Secure Insulation

  • Check the Fit: Once the insulation is in place, double-check that the material is fitted snugly around the pipe with no gaps. Gaps or loose areas can lead to energy loss or moisture buildup.
  • Insulation Supports: For larger pipes or if needed, install pipe supports or insulation hangers to hold the insulation in place and prevent sagging over time.

7. Pressure Test and Recommission the System

Once the new insulation is installed, you can begin to recommission the chilled water system:

  • Pressurize the System: Turn the chilled water system back on, and gradually increase pressure if needed. Ensure there are no leaks and that the system is functioning correctly.
  • Monitor for Issues: After the system is running, monitor it for a few hours to ensure that everything is working as expected, and the insulation is securely in place.

8. Clean Up

  • Dispose of Old Materials: Properly dispose of any old insulation materials.
  • Final Inspection: Perform a final inspection to ensure that the insulation is secure and that all tools and equipment are cleaned and stored.
